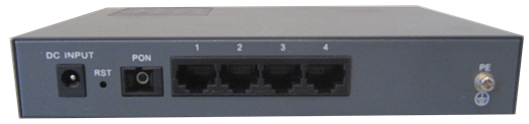

EPON ONU 4GE PORTS GDONU100-4GE

Overview    GDONU100-4GE is an ONU device designed by Looto༒m based on mixing and multi-service network. This series of products follow the international standard IEEE 802.3 ah, the communications industry standard of China (YD/T 1475-2006), and the EPON equipment technical requirements of China Telecom. It possesses good 🌱 interoperability and maneuverability and it can realize interconnection with the mainstream OLT equipment manufacturers. Features         ● By using point to multipoint network topology, it can effectively collect scattered ethernet business users and convergence, fast ethernet interface on the user side to ✃ provide a standard RJ45 to smooth interconnection with the existing network.
        ● Dynamic bandwidth allocati༒on mechanism ensures that all users can more reasonably share 1 Gbps bandwidth and realizing the reliable quality of service (QOS) and ensuring different business service quality 🍰in the same network.
        ● It supports IGMP multicast and makes good use 🐼of broadband. ༒
        ● Itꦇ supp👍orts ports isolation.
        ● It supports et൲hernet loop detection, can automatically judge whether there is a ethernet device network loop blocking .When loop disappears, it can automatically ♔ recover.
        ● 🐻 It supports multicast VLAN. 🌠
        ● 🦩 It supports 🍨remote loopback and remote diagnosis of network status.
        ● It possesses rich OAM functional design, including configuration, alarm, p༒erformance monitoring, fault isolation and safety management, etc. I🉐t can provide the OLT remote management, and support local management. Technical Specifications

Item	GDONU100-4GE
User Networks 🌞 interface	4 fix𒀰ed 10/100/1000 MBASE-T self-adaptive RJ45 interface
PON ♛💃 interface	Up and down symmetrical 🐓 transmission rate:1.25Gbps Netwo💙rk coverage radius : 20 km Optical interface type：SC/PC Optical receiver with 🐭 high sensitivity : ≥-26dBm Luminous power：0~4dBm Security:ONU 𒁃 authentication mechanism
Standard	IEEE 802.3ah The communications 🦄 industry standard of China (YD/T 1475-2006) IEEE 802.1D, Spanning 🌸 Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP Ethernet – II, ethernet ♏ꦚ –SNAP
VLAN	VLAN based on 🧸 parts IEEE 802.1Q VLAN
QOS	Back pressure type fluid ꦆ 🅰 control (half duplex) IEEE 802.3x fluid（full duplex） Preventing T💃he Head Of Li🍸ne mechanism IEEE p802.1p, COS Each port four queues 🦋 sent 8t prior WR.SP and FIFO queue schedu▨ling algorithm Port speed 🦩 limiting Each port four sen🐈t eight 🅷 priority queue map 802.1 p WR, SP and FIFO queue scheduling alg💙orithm Port speed limit
Reliability	UDLD(Single direction 🐻 link detection 🐲protocol , preventing the survival tree loop) supporting functions of ꦑ Dying-Gasp
Network ܫ 🌄 security	IEEE 802.1x, the access 𒆙 control based on the port. Supporting local and remote identification, EAP end or pass through CHAP, EAP 🍒 iden🎃tification Limiting the maximum number of users of per port🎃 Protection of port Message storm 𒁏 ඣ control
Administration 𝓡 🐼 allocation	CLI, Web𒅌,SNMP, 🐽 TELNET,etc. Upgrading software 🍷 through TFTP Local or server system 🌟 log to record system log Ping, trace route🔴 network ജ testing tools, etc.
Dimension	170 mm(W) x 98 mm(D) 💖x 28 ♍ mm(H) Box dimension: 280 mm(W) 🎀 x 130 mm(D) x 50 mm(H) Weight : <0.7kg
Dimension	Installation ：plug and play
H🔯eat dispersion	Even used for a long time (24 hours), equipment will be heated, but it will not cause ♋ performance degradation and device deformation damage .
Surroundiꦗng☂s parameter	Operating temperature：0℃～50℃
Surroundiꦗng☂s parameter	Storage temperature：-40℃～80℃
Power 💙 supply	The power adapter type: 𓄧 switch power adaptꦦer
	Rated input voltage：110V～240V，50/60Hz。
	Input voltage fluctuation ：domestic ±20％,international ±10％。
	Fuse：installing an unrecoverable ༒ temperature resistance at the input end
	power: <7W
Body 🧔 🔴 case	Metal case
